Integrated Microwave Assemblies

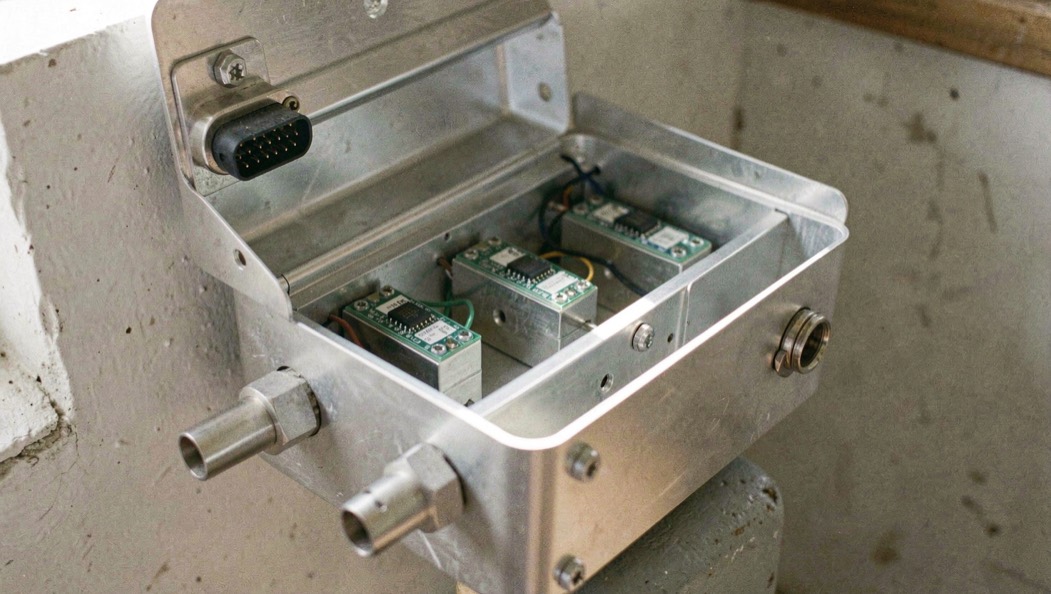

An integrated microwave assembly is not a bigger component. It is a change of interface: instead of buying a switch, an attenuator and a detector and accepting the loss, mismatch and control complexity of the connections between them, a system buys one housing that presents a smaller number of ports and a single control interface. What was a set of component datasheets becomes one specification written against the assembly.

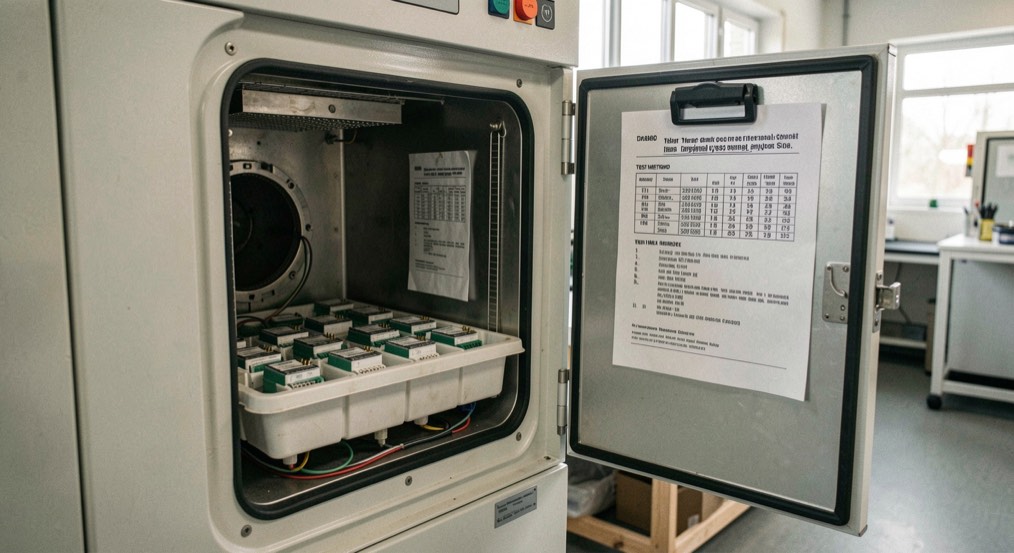

Two pages develop this. What an assembly integrates is the primer and keeps the historical address it has always had. Screening and qualification documents explains what a test method number certifies and what it does not.

The specification moves with the interface

Once several functions share a housing, several parameters stop being separable. Insertion loss is stated through the whole path rather than per stage, isolation is measured between assembly ports, and the control interface becomes part of the specification rather than an accessory. An assembly datasheet that still reads like a component datasheet is usually hiding one of those changes.

Terms and units are in the datasheet parameter index.

What this section will not print

No assembly is described as a product, no application is named, and no platform appears anywhere on this site. An assembly is defined by the system it was built for, and describing that system is neither this publication's subject nor its business. What is described is the change of interface itself, and how a specification written against an assembly differs from one written against a component.

The test method families cited on such a specification are explained without a single figure attached to them, for the same reason.

There is also a practical consequence that a specification never states. Once several functions live behind one control connector, a failure is diagnosed on the whole housing rather than on a stage, and a stage cannot be replaced on its own. That is not an argument against integration; it is the other half of the trade, and a reader comparing an assembly with a set of components should have both halves in front of them.
